Medical Innovations
CODE: 182-25

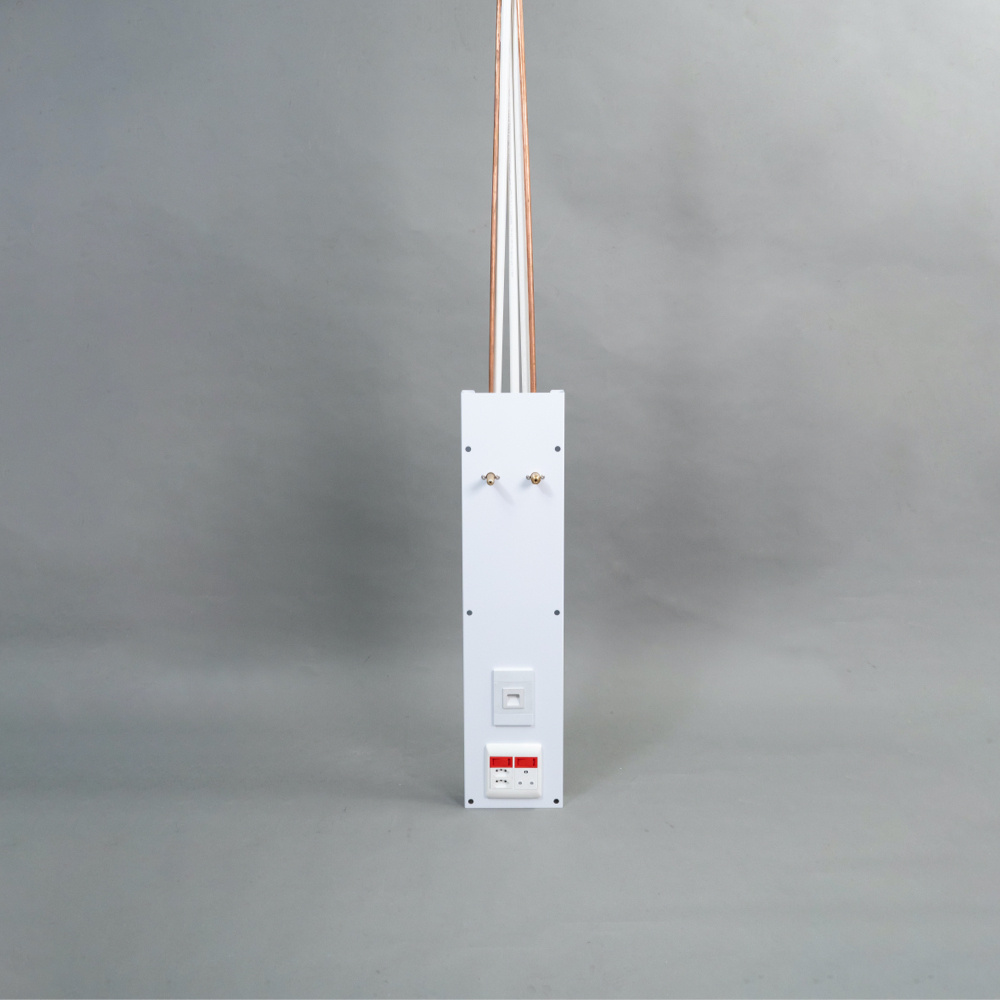

A rectangular service panel is installed in wards. It is made from a rectangular aluminium plate with a powder-coated finish.
Function
To bring services to the head of the bed.
Dimensions
H 930 mm x W 214 mm x D 56 mm
Cleaning
To be cleaned with a disinfectant agent, NOT a chlorine-based chemical.
Department
Wards.
Features
Cost Effective
Cost-effective installation with easy access for maintenance and nursing staff.
Construction
Aluminium. 1 off 2 x 4 standby switch socket / 1 off 2-lever switch 4 x 4 with Euro socket / 1 off LED night light / 1 off oxygen connector / 1 off vacuum connector /
Surface Finish
Hard-wearing powder-coated finish
Installation Position
Wall-mounted
Service Entry
Through ceiling void.
High Voltage
230 Volts.
Low Voltage
Suits specific requirements including data, telephone and network plugs etc.
Medical Gas
Unit can accommodate gas sockets as per customer specifications.
Illumination
Small LED night light
Customisation Options
Unit lengths and service requirements are manufactured as per customer specifications. Dialysis feature available on request.
