Medical Innovations
CODE: YB-64

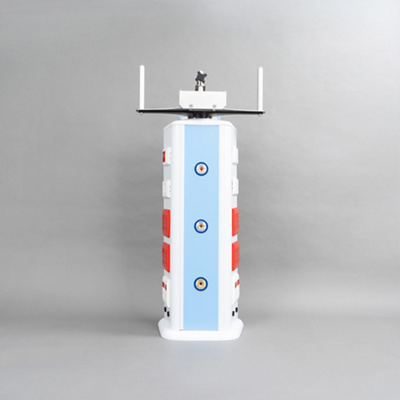

Floor-mounted unit constructed from:
- Aluminium body with hard-wearing powder-coated finish
- Gas and electrical services included
Function
Used for the supply of electrical and various gas services in the trauma room. The unit can accommodate a total for four 2 x 4 sockets and four 4 x 4 sockets.
Dimensions
H 970 mm x W 342 mm x D 245 mm
Cleaning
Clean with a disinfectant agent, NOT a chlorine-based chemical.
Department
ER.
Features
Construction
Aluminium body
Surface Finish
Hard-wearing powder-coated finish.
Installation Position
Floor-mounted
Service Entry
Services supplied via floor-based trunking.
High Voltage
230 Volts, electric sockets are supplied but not pre-wired.
Low Voltage
To suit specific requirements including data, telephone, network plugs etc.
Medical Gas
Unit can accommodate a total of 6 gas sockets as per customer specifications. Gas sockets can also be arranged as per customer specifications.
Customisation Options
Layout can be changed to accommodate customer specifications.
