Medical Innovations
CODE: 95-PF24-CR-00
Offers a flexible “off the floor” solution that allows qualified medical personnel easy access to the necessary services with no risk of exposed piping and electrical wiring within the patient area.
Dimensions
Product Weight: 87 kg per head
Product Payload: 20 kg
Rotation: Can be rotated within 320° to position system appropriately
Cleaning
To be cleaned with a disinfectant agent, NOT a chlorine-based chemical.
Department
Intensive Care Units.
Features
Construction

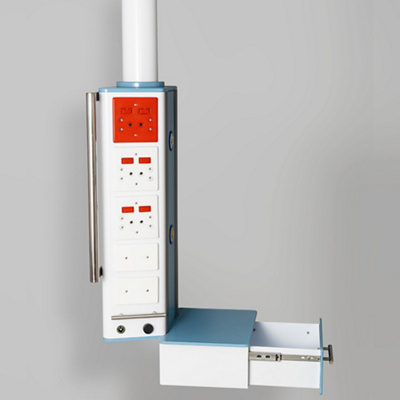

An integrated ceiling-mounted pendant, with articulated arms and body constructed from extruded aluminium body, covered with a hard-wearing powder-coated finish.
Installation Position
Vertical ceiling mounting
Service Entry
Services through ceiling void/core drill hole from plantroom
Electrical Supply
Unit can accommodate maximum of twenty sockets for various requirements including data, telephone, network plugs, etc. (as per clients' specifications).
High Voltage
230 Volts, plugs attached but not prewired
Low Voltage
To suit specific requirements including data, telephone, network plugs, etc.
Medical Gas
Each pendant can accommodate a total of 5 gas sockets as per clients' specifications
Customisable Options
Unit lengths and service requirements are manufactured as per customer specifications
Suitable Mounting Solutions (available on request)
Wire baskets and utility poles.
